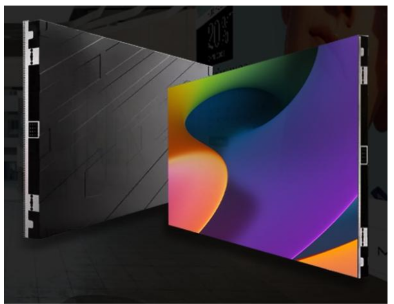

Indoor Fine Pitch Series



Spesification
Model | LI12S-T | LI15S-T | LI18S-T | LI20S-T | LI25S-T | LI30S-T |
---|---|---|---|---|---|---|
Pixel Pitch(mm) | 1.25 | 1.53 | 1.86 | 2.0 | 2.5 | 3.07 |
LED Configuration | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD2121 | SMD2121 |
Cabinet Size(mm) | 640×480/640×640/960×480/320×160 | |||||
Cabinet Resolution (dots)640x480mm | 512×384 | 416×312 | 344×258 | 320×240 | 256×192 | 208×156 |
Brightness | ≥600cd/m² | ≥800cd/m² | ≥800cd/m² | ≥800cd/m² | ≥800cd/m² | ≥800cd/m² |
Ingress Protection | IP31 | |||||
Maintenance | Front/Rear | |||||
Max./Avg. Power consumption(W/sqm) | 600W/200W | |||||
Working Voltage | 100-240V AC50-60Hz | |||||
Viewing Angle(H/V) | H170°v170° | |||||
Gray Scale | 16bit | |||||
Refresh rate | ≥3840Hz | |||||
Control Mode | Synchronous display with control PC by DVI | |||||
Support Input | Composite ,S-Video ,Component ,VGA ,DVI ,HDMI ,SDI | |||||
Operating Temperature | -40°C~80°C(work) , storage for :-30°C~+90°C | |||||
Operating Humidity | 10%—90%RH |
