Flexible Series
Description

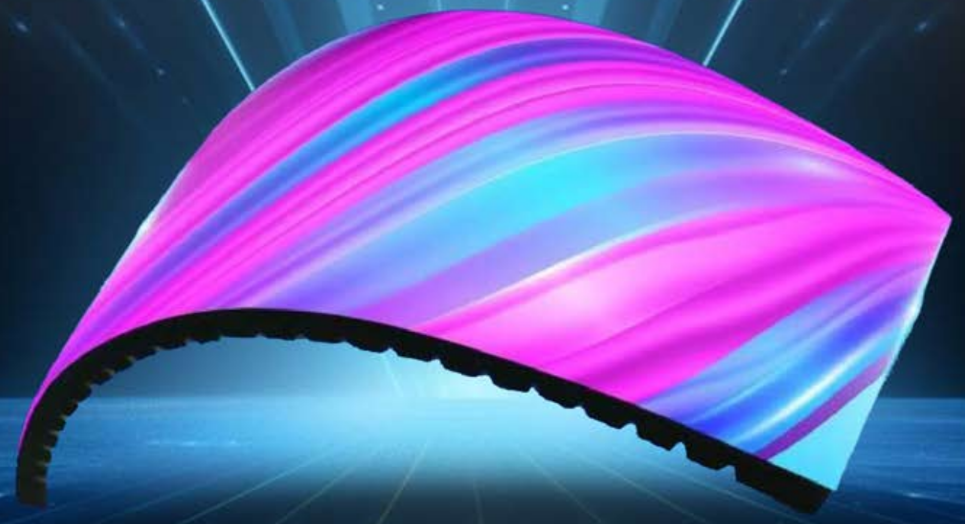

The Flexible LED Display Videotron Indoor ITPLUS is an advanced display solution designed for dynamic indoor displays. Featuring flexible LED panels, it allows for seamless installation on various surfaces, including curved or irregular shapes, making it ideal for advertising, exhibitions, or event venues. The high-resolution display ensures vibrant, sharp visuals, making it perfect for capturing attention in any setting. Its durability and easy installation process make it a popular choice for both temporary and permanent setups. Available in different sizes and configurations, the Flexible LED Display Videotron Indoor ITPLUS offers versatile options for creating captivating visual experiences in indoor spaces.
Feature
• Prompt automatic up/down performance within 20s.
• Automatic adjustable viewing angle +/-15° of the monitor.
• Ultra-slim shape≤78mm width maximizing your worksurface area.
• Aluminum construction in elaborate finish with an elegant and stylish design.
• Each unit boasts a FHD flat panel of high resolution 1920×1080. Touch screen optional.
• Easy Installation, Smooth, Quiet and Robust performance
• CE Approval, ROHS Certified, 3C approved and ISO standard.
• Circular spindle designed between LCD and lift benefits a smooth angle motion and prevents hand from being jammed.
• Manual Button, Remote Control, Central Control via RS485/RS232 compatible with most control systems such as AMX/Crestron/Extron.
• Built-in cable management keeps all cables and wires neat and organized.
• Standard color silver, black, gold. Offer Customized Solution
Spesification
| Model | LI12MF-L | LI15MF-L | LI18MF-L | LI20MF-L | LI25MF-L |
|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.2 | 1.56 | 1.86 | 2 | 2.5 |
| Pixel Density (pixel/m2) | 600625 | 406406 | 288906 | 250000 | 160000 |
| LED Type | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD1515 |
| Pixel Composition | 1R1G1B | ||||
| Module Resolution WxH (mm) | 320×160 | ||||
| Module Resolution (WxH) (pixel) | 248×124 | 204×102 | 172×86 | 160×80 | 128×64 |
| Brightness (nits) | 600 | ||||
| Brightness Adjustment | Programmable/Auto/Manual | ||||
| Viewing Angle | H: 150o V:120o | ||||
| Gray Scale (Bit) | 13 | ||||
| Refresh Rate (Hz) | 3840 | ||||
| Frame Rate (Hz) | 60 | ||||
| Contrast Ratio | 6000:1 | 6000:1 | 5000:1 | 6000:1 | 6000:1 |
| Color Temperature (K) | 10000-12000K | ||||
| Brightness/Chromatically Uniformity | 95% | ||||
| Operating Voltage (V) | AC 110-240±10% | ||||
| Average Power Consumption (W/m2) | 170 | 125 | 123 | 128 | 118 |
| Peak Power Consumption (W/m2) | 600 | 440 | 420 | 450 | 410 |
| Power Supply Mode | Built in AC Power Supply | ||||
| Maintenance | Front | ||||
| Protection Grade | IP30 | ||||
| Working Environment (oC/%rh) | -20~40 | ||||
| Storage Environment (oC/%rh) | -20~40 | ||||
| Bendability | ≤120 ° | ||||
