Fine - Pitch LED Display
Specification
| Model | LIP18-L | LIP20-L | LIP25-L |
|---|---|---|---|
| Pixel Pitch (mm) | 1.8 | 2 | 2.5 |
| Pixel Destiny (dot/m²) | 288908 | 250000 | 160000 |
| Panel Resolution W*H (Pixel) | 172*258 | 160*240 | 128*192 |
| Module Size W*H | 320*160 | 320*160 | 320*160 |
| Module Resolution W*H (Pixel) | 172*86 | 160*80 | 128*64 |
| Brightness(nits) | 500 | 500 | 500 |
| Average Power Consumption(W/m²) | 123 | 118 | 106 |
| Maximum Power Consumption(W/m²) | 492 | 469 | 422 |
| LED Type | SMD |

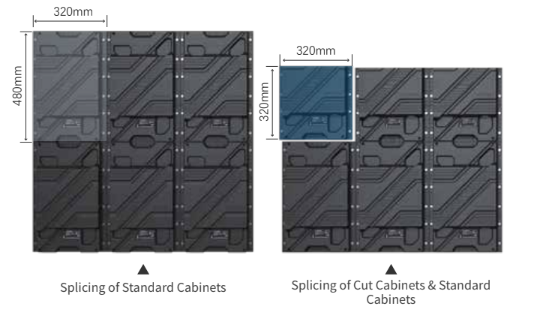

| Panel Size W*H (mm) | 320*480*58 |
| Panel Material | Plastic |
| Weight (Kg/pc) | 2.6 |
| Brightness Adjustment | Programmable/Automatic/Manual |
| Viewing Angle (H/V) | 160 / 140 |
| Refresh Rate (Hz) | 3840 |
| Frame Rate (Hz) | 50/60 |
| Color Temperature(K) | 2000-10000 (Adjustable) |
| Voltage | AC 100-240 |
| Serviceability | Front |
| IP Rating | IP30 |
| Lifespan (Hours) | 100000 |
