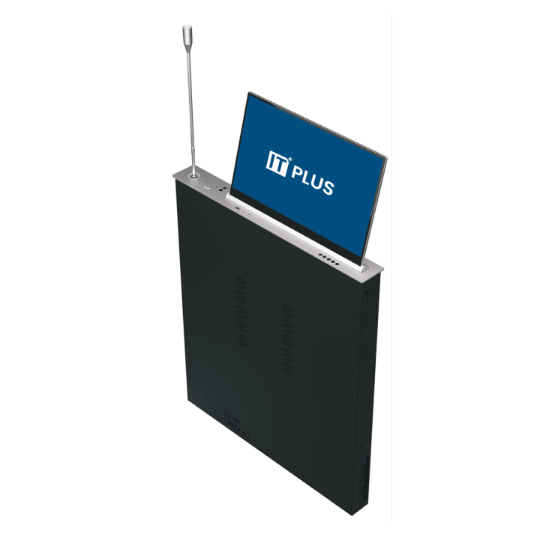

Dual-screen Lift Integrated Terminal with Microphone Lift
address the limitations of traditional conference lift screens, such as single
functionality and lack of interactivity, ITPLUS has developed the ninth
generation product: a dual-screen, integrated terminal with a microphone and
lift function. This series of products has become an inevitable trend to replace
traditional conference room lift products due to its outstanding interactivity,
rich conference functions, industry-stable and reliable secure power supply
design, outstanding appearance design, and excellent user experience.
Specification
| Product type | MPB-156MCT | MPB-173MCT | MPB-215MCT |
| Main screen size | 15.6 inches | 17.3 inches | 21.5 inches |
| Screen Resolution | 1920 × 1080 (16:9) | 1920 × 1080 (16:9) | 1920 × 1080 (16:9) |
| Backlight type | LED | LED | LED |
| Display structure | Front tempered glass + aluminum frame | Front tempered glass + aluminum frame | Front tempered glass + aluminum frame |
| Touch method | Capacitive touch screen | Capacitive touch screen | Capacitive touch screen |
| Pitch angle | 15 degrees elevation | 15 degrees elevation | 15 degrees elevation |
| Power supply method | DC 12V | DC 12V | DC 12V |
| Back screen size | 10.1 inches | 10.1 inches | 10.1 inches |
| Operating system | Windows/Android | Windows/Android | Windows/Android |
| Microphone pickup distance | 0–500 mm | 0–500 mm | 0–500 mm |
| Microphone sensitivity | -38 dB ± 3 dB | -38 dB ± 3 dB | -38 dB ± 3 dB |
| Microphone Connection | Point to Point network cable | Point to Point network cable | Point to Point network cable |
| Dimension (mm) | 555 × 70 × 680 | 590 × 70 × 680 | 692 × 70 × 680 |
