All-in-One Video Controller

Function Limitations

Function	Limitation	Mutually Exclusive Function
Low Latency	All cabinets loaded by Ethernet ports must be aligned at the top of the circumscribed rectangle.	N/A
Mosaic	– Only the main layer can use the mosaic source. – When the main layer uses the mosaic source, the PIP layer cannot be opened.	PIP layer
Image Mosaic	After the image mosaic function is turned on, the full screen scaling and pixel-to-pixel display of the layer are unavailable	N/A
Main Layer Transition Effect	– When the PIP layer is opened, the fade effect is unavailable. – When the main layer uses the mosaic source, the fade effect is unavailable.	N/A

Supports various RFID format, ID card (standard), IC card (optional)
Support Temperature Detection Module (Optional)
Built with smart-phone grade touch panel, offers smooth and high-responsive operation experience
Equipped with one of the industry-leading facial recognition technology bringing its anti-spoofing performance to a new height
The combination of barcode and printer meet different customer needs
Offers multiple integration options through LCDP SDK and API

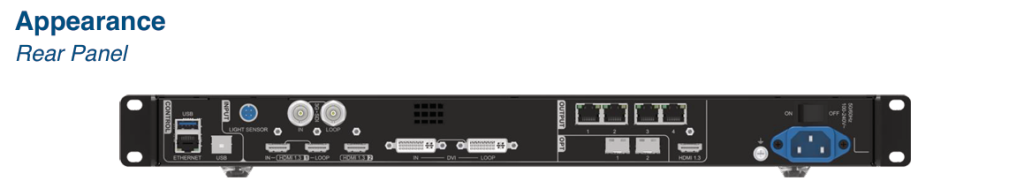

Input Connectors
Connector	Qty	Description
3G-SDI	1	– ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video inputs supported – Max. input resolution: 1920×1080@60Hz – processing supported – 3G-SDI loop output supported – DOES NOT support input resolution and bit depth settings.
HDMI 1.3	2	Max. input resolution: 1920×1200@60Hz – HDCP 1.4 compliant – DOES NOT support interlaced signal inputs

Input Connectors	Bit Depth		Max. Input Resolution
		YCbCr 4:2:0	Not supported
	10-bit		Not supported
	12-bit		Not supported
3G-SDI	Max. input resolution: 1920×1080@60Hz DOES NOT support input resolution and bit depth settings. Supports ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video inputs.
