All In One LED Display
Description

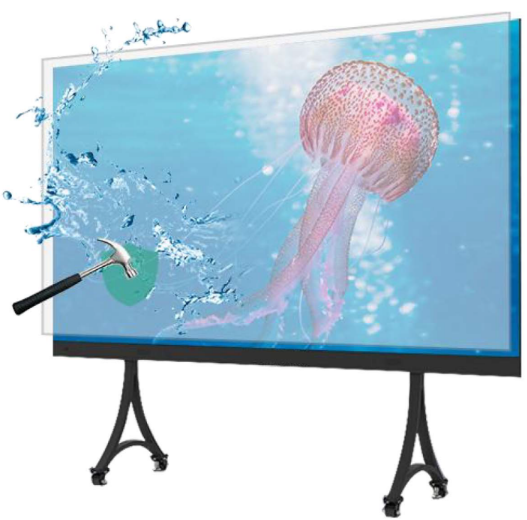

The ITPLUS All-in-one 135″ and 165″ LED displays deliver vibrant, high-quality visuals perfect for boardrooms, conference rooms, and residential settings. Integrated video conference software enhances remote communication, while the intuitive remote operation simplifies setup and control. Designed for seamless functionality, these displays provide an immersive audio-visual experience, making them an ideal solution for both professional and personal environments.
Product Details
| DETAILS | ITPLUS AI3SC-T | ITPLUS AI6SC-T |
|---|---|---|
| Pixel Pitch (mm) | 0.78 | 0.9 |
| LED Configuration | COB | COB |
| Display Resolution(W x H) | 3840×1920 | 3840×1920 |
| Display Size(inch) | 135inch | 163inch |
| Screen Dimensions (W x H x D) (mm) | 3000×1687.5x40mm | 3600x2025x40mm |
| Panel Dimensions (W x H x D) (mm) | 600×337.5x40mm | 600×337.5x40mm |
| No. of Cabinet Per Screen (W x H) | 5×5 | 6×6 |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum |
| Screen Weight(including frame) | 160KG | 230KG |
| Gray Level (bit) | 16bit | 16bit |
| Aspect Ratio | 16:9 | 16:9 |
| Contrast Ratio | 3,000:1 | 3,000:1 |
| Visual Viewing Angle (H x V) | 160° x 160° | 160° x 160° |
| Brightness Uniformity | 95% | 95% |
| Power Supply Voltage | 100-240 V | 100-240 V |
| Average Power Consumption(W/Screen) | ≤1300W | ≤1400W |
| Max Power Consumption (W/ Screen) | ≤4000W | ≤4200W |
| Refresh Rate | 3,840 Hz | 3,840 Hz |
| OS | Android 11.0 | Android, Windows, IOS |
| Memory | 4GB | 4GB |
| Storage | 32GB | 32GB |
| Language | Chinese/English/French/German/ | Chinese/English/French/German/ |
| Spanish/Italian/Polish/Arabic | Spanish/Italian/Polish/Arabic | |
| Speaker | Built-in 30W×2 | Built-in 30W×2 |
| Touch Frame | IR Touch | IR Touch |
| Touch Point | 1 point | 10 point |
| Operating Temp/Humidity | -20-40 °C/10%-90%RH (no frost) | -20-40 °C/10% – 90% RH (no frost) |
| Storage Temp/Humidity | -20-40 °C/10%-65%RH (no frost) | -20-40 °C/10%-65%RH (no frost) |
| IP Rating | IP51 | IP51 |
| Expected LED Lifetime (Max) | 100,000 Hrs | 100,000 Hrs |
| Installation Method 1 | Wall Mounted | Wall Mounted |
| Installation Method 2 | Removable Ground Support | Removable Ground Support |
| Maintenance | Front/Rear | Front/Rear |
| Standard Certification | CCC/CE/CB/FCC/ETL | CCC/CE/CB/FCC/ETL |
